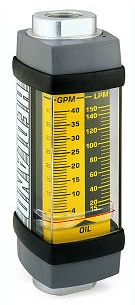

Basic Flow Meter Flow ranges: 0.02 - 0.2 GPM (0.1 - 0.75 LPM) up to 20 - 300 GPM (100 - 1100 LPM) Construction: Aluminum, brass and T303 stainless steel Sizes: 1/4 to 3 inch ports Ports: SAE, NPTF, BSPP, Code 61 and Code 62, 4-bolt flanged Pressure up to 6,000 psi (414 bar) maximum Temperature up to 240 °F (116 °C) Accuracy ±2% full scale Repeatability ±1% Standard calibration: .876 specific gravity, 140 SUS (32 cSt) hydraulic oil Direct reading Install in any position 360° rotatable guard/scale Easier to read linear scale No flow straighteners or special piping required Relatively insensitive to shock and vibration Good viscosity stability (40 to 500 SUS / 4.2 to 108 cSt) Optional: - Special scales available - Reverse flow by-pass
