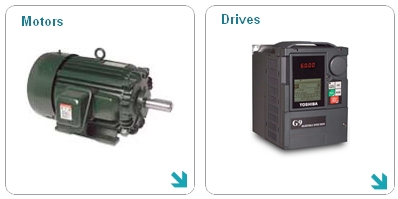

TOSHIBA ELECTRIC MOTOR, TOSHIBA INVERTER, TOSHIBA HIGH VOLTAGE INVERTER, TOSHIBA PUMP, TOSHIBA DRIVER

Toshiba¡¯s EQPIII 840? addresses the many special requirements of the mill and chemical industries where motor performance and reliability are at a premium. Motors are built from 3/4HP through 500HP, 3600RPM to 900RPM, 460 or 575 volt, in frame sizes from 143T through 5810U. All Motors are cast iron IP54 or IP55 protected, built to meet NEMA Premium Efficiency, and are inverter ready. Motors feature Inpro/Seal on both the DE and ODE (320 frame & larger) and typical vibration levels (unfiltered) of 0.06 in/sec or less. The 840? is a clear choice for your toughest environments. These motors carry a Three Year Warranty. Click here for 3D drawing. EQPIII-840 PRODUCT SCOPE Horsepower 3/4 to 500 HP Speed 3600, 1800, 1200, or 900 RPM Voltage 460 or 575 V Enclosure Totally Enclosed Fan Cooled Frame Size 143T through 5810U Construction Cast Iron Vibration (Unfiltered) Typically 0.06 Inches/Second or Less Insulation Class F, Exceeds NEMA MG1 Part 31 (Inverter Duty)

MTX NEMA 3R MV Severe Outdoor Toshiba proudly introduces the MTX NEMA 3R Outdoor Medium Voltage ASD. The MTX is the world¡¯s first ASD specifically designed for outdoor mounting in remote applications or applications where a building does not exist. It features an innovative enclosure design and power section topology that is unprecedented in the medium voltage ASD arena. The MTX is two enclosure types married together. The transformer section is convection cooled. There are no moving parts, and heat is eliminated through passive vents at the top of the drive. The inverter section is forced cooled. Power modules are designed with the heat sinks out-the-back to send waste heat to the atmosphere. The interior of the inverter section is cooled using plate-type heat exchanger(s) so it remains cool and clean without introducing outside air. The new topology is a logical progression of the proven T300MVi design in a UL Raintight enclosure. Additionally, you will achieve a lower cost of ownership with the MTX because heat removal from a building-based drive is eliminated.

Low Voltage Motors Premium Efficiency Heavy Duty Induction Motors ...more Standard range includes:- 0.37 kW to 1000 kW 2,4,6 & 8 pole is standard multi speed and low speed motors available upon request protection classifications from IP55 through to IP66 Flameproof Motors- (Ex¡¯d) ...more Extensive range includes:- 0.37 kW to 695 kW (up to 1100V) 2,4,6 & 8 pole is standard multi speed and low speed motors available upon request protection classifications from IP55 through to IP66 Hazardous Area Motors ...more Stock carried in warehouses nation wide Ratings: - 0.37kW to 800kW (200V ¨C 1100V) - 2,4,6,8 Pole (specials available) - Protection Classification of IP55 through to IP66 Additional Motor Range ...more Wound Rotor motors Multi speed motors Brake motors Open Drip Proof motors IEC/CENELEC and NEMA frames Project and Motor Support ...more At Toshiba, we pride ourselves on supporting our customers from design concept, tendering through to commissioning. Toshiba¡¯s world wide applications include rolling mill drives, roller drives, coilers, crushers, grinding mills (sag/ball), conveyor refiners, centrifuges, pumps, fans, compressors, reciprocating machines, shredders, extruders, cranes and hoists.

TOSHIBA inverter series] The TOSHIBA inverter drives 3 phase induction motor at any speed easily. The Toshiba inverter can be used for energy saving and the other various usages. [Features of the TOSHIBA inverter] - Built-in noise filter (VF-AS1, VF-PS1, VF-MB1, VF-S11, VF-FS1) - Harmonics reduction (VF-AS1, VF-PS1 and all models of VF-FS1) - Complied with UL, CE and CSA at all series - Open field network Note: Please refer each inverter series about details. -------------------------------------------------------------------------------- High performanceFeatureDimensionsStandard spec.Common spec. How to use Manual Catalog Wiring device Option [Feature] The VF-AS1 has outstanding Performance, including high torque, fast response, high accuracy and excellent environmental compatibility with easy operation. The VF-AS1 is an advanced inverter evolved to satisfy all your needs in one comprehensive product. [Capacity range] 3ph 200V 0.4 to 75kW 3ph 400V 0.75 to 500kW etc... -------------------------------------------------------------------------------- Multi-functionFeatureDimensionsStandard spec.Common spec. Manual Catalog [Feature] SLIM SHAPE BODY ADVANCED MOTOR DRIVE FLEXIBLE OPERATION [Capacity range] 1ph 240V 0.2 to 2.2kW 3ph 500V 0.4 to 15kW Not be provided in the Japanese market. -------------------------------------------------------------------------------- For fan and pumpFeatureDimensionsStandard spec.Common spec. How to use Manual Catalog Wiring device Option [Feature] A convenient special function (energy saving and automatic drive) for fan pump is installed, and the capacity range up to 630kW. The VF-PS1 has several building network with optional board. [Capacity range] 3ph 200V 0.4 to 90kW 3ph 400V 0.75 to 630kW 3ph 400V 0.75 to 90kW (IP54) etc... -------------------------------------------------------------------------------- CompactFeatureDimensionsStandard spec.Common spec. How to use Manual Catalog Wiring device Option [Feature] The VF-S11 series can widely use it from fan pump to the transportation machine and the machine tool. The enclosure model (IP54) is prepared. [Capacity range] 1ph 200V 0.2 to 2.2kW 3ph 200V 0.4 to 15kW 3ph 400V 0.4 to 15kW etc... -------------------------------------------------------------------------------- For HVACFeatureDimensionsStandard spec.Common spec. How to use Manual Catalog Wiring device Option [Feature] Reactor-less harmonics reduction and high-frequency noise reduction by Toshiba specific technology. The VF-FS1 series is the best inverter for fan and pump of air-conditioning. [Capacity range] 3ph 200V 0.4 to 30kW 3ph 400V 0.4 to 75kW 3ph 400V 0.75 to 75kW (IP54) -------------------------------------------------------------------------------- Compact, simpleFeatureDimensionsStandard spec.Common spec. How to use Manual Catalog Wiring device Option [Feature] The wide range of functions of the VF-nC3 meets various users' needs, from simple speed control to steady torque at low speed. The vertical contact-type main circuit terminal board and captive screws also ensure easy wiring. [Capacity range] 1ph 100V 0.1 to 0.75kW 1ph 200V 0.1 to 2.2kW 3ph 200V 0.1 to 3.7kW -------------------------------------------------------------------------------- Compact, simpleFeatureDimensionsStandard spec.Common spec. How to use Manual Catalog Wiring device Option [Feature] The wide range of functions of the VF-nC1 meets various users' needs, from simple speed control to steady torque at low speed. The vertical contact-type main circuit terminal board and captive screws also ensure easy wiring. [Capacity range] 1ph 100V 0.1 to 0.75kW 1ph 200V 0.2 to 2.2kW 3ph 200V 0.1 to 2.2kW -------------------------------------------------------------------------------- Optional devices AC reactor DC reactor Braking resistor etc. There are some kinds of optional device. The AC reactor and the DC reactor are effective to reduce harmonics. The braking resistor is discharged of regenerating power from a motor. -------------------------------------------------------------------------------- Other Harmonic suppression converter: SC7 Regenerating converter: RC7 TOSVERT VF-A7 TOSVERT VF-P7 -------------------------------------------------------------------------------- End of sales TOSVERT VF-S9 TOSVERT VF-S7 TOSVERT VF-S7e TOSVERT VF-A5 TOSVERT VF-A5P etc. -------------------------------------------------------------------------------- Page Top Energy SavingHarmonics Suppression Safety PrecautionCompany InformationProduct informationTOSVERT VF-AS1TOSVERT VF-PS1TOSVERT VF-MB1TOSVERT VF-S11TOSVERT VF-FS1TOSVERT VF-nC3Optional deviceCatalog, manual
