Dunkermotoren直流电机，Dunkermotoren交流电机，
Dunkermotoren行星齿轮箱，Dunkermotoren控制器,
Dunkermotoren百叶窗驱动器, Dunkermotren制动器,
Dunkermotoren无刷直流电机, Dunkermotoren伺服元件.

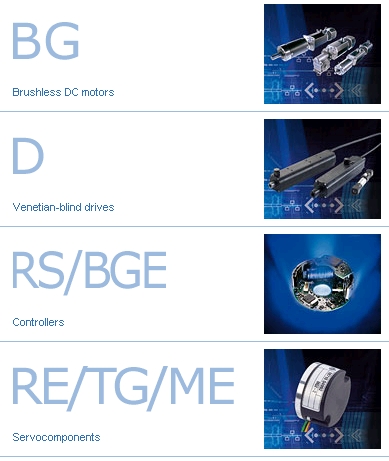

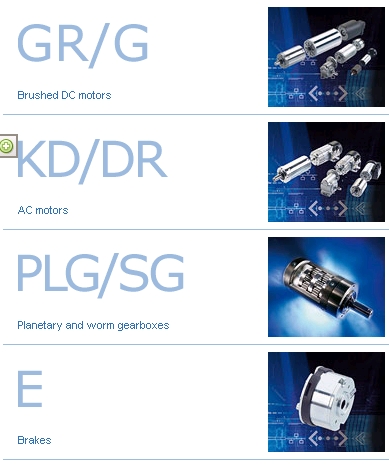

Dunkermotoren有刷直流电机 GR/G无刷直流电机 BG交流电机 KD/DR百叶窗驱动器 D行星和涡轮式齿轮 PLG/SG制动器控制器编码器
Dunkermotoren GR/G系列永磁直流电机（换向直流电机）因为如下特点而闻名于世： 使用寿命比其他制造商制造的换向电机长 低定位力矩 高效率 高动态加速度 良好的调节特性 高功率密度 免维护 设计坚固 低惯量 电机绝缘等级E 绕组绝缘等级F 电机极高的短时过载能力 表面防护 最低的干扰辐射，提供不同干扰程度的产品可供选择 防护等级高达IP 65 由于使用全自动生产线进行制造，从而使产品具有优良的质量 直流电动机可与控制电子设备、齿轮箱、制动器和编码器结合成一个模块化系统以提供灵活的、适应性强的、面向市场的解决方案
ALCATEL-LUCENT Dunkermotoren BRUSHED DC MOTORS GR/G GR/G GR 22 GR 22 S G 30.2 G 30.1 G 30.1 S G 30.0 G 30.0 S VDC Rated Voltage UN (VDC): Voltage versions, in which the motor size is available (The DC voltage that ist applied to the motor as a system supply voltage). Motor applications are, however, not restricted to this voltage. 6, 12, 24 6, 12, 24 12, 24, 40 12, 24, 40 12, 24, 40 12, 24, 40 12, 24, 40 W Rated Power PN (W): The output power which the motor can produce continuously. 2,5 3 4 6 7 10 11 Ncm Rated Torque MN (Ncm): The torque that can be produced by the motor, operating continuously. 0,48 0,57 1 1,7 2 3 3,7 rpm Rated Speed nN (rpm): The speed of the motor when it is operating at rated torque. 4600 4100 3000 3400 3100 3030 2650 Motor with integrated Controller SI SI (4Q) Integrated Speed Controller GR/G GR 42x25 GR 42x40 GR 51x30 GR 51x58 GR 53x30 GR 53x58 GR 63x25 GR 63x55 VDC Rated Voltage UN (VDC): Voltage versions, in which the motor size is available (The DC voltage that ist applied to the motor as a system supply voltage). Motor applications are, however, not restricted to this voltage. 12, 24, 40 12, 24, 40 12, 24, 40, 60 12, 24, 40, 60 12, 24, 40, 60 12, 24, 40, 60 12, 24, 40, 60 12, 24, 40, 60 W Rated Power PN (W): The output power which the motor can produce continuously. 15 20 40 60 40 60 50 100 Ncm Rated Torque MN (Ncm): The torque that can be produced by the motor, operating continuously. 3,8 5,7 10 17 10 17 14 27 rpm Rated Speed nN (rpm): The speed of the motor when it is operating at rated torque. 3600 3100 3600 3000 3600 3000 3300 3350 Motor with integrated Controller SI SI (4Q) Integrated Speed Controller GR/G GR 80x40 GR 80x80 VDC Rated Voltage UN (VDC): Voltage versions, in which the motor size is available (The DC voltage that ist applied to the motor as a system supply voltage). Motor applications are, however, not restricted to this voltage. 12, 24, 40, 60 24, 40, 60 W Rated Power PN (W): The output power which the motor can produce continuously. 120 240 Ncm Rated Torque MN (Ncm): The torque that can be produced by the motor, operating continuously. 35 62 rpm Rated Speed nN (rpm): The speed of the motor when it is operating at rated torque. 2900 3200 Motor with integrated Controller SI SI (4Q) Integrated Speed Controller

Dunkermotoren直流电机，Dunkermotoren交流电机，Dunkermotoren齿轮箱，Dunkermotoren控制器.
