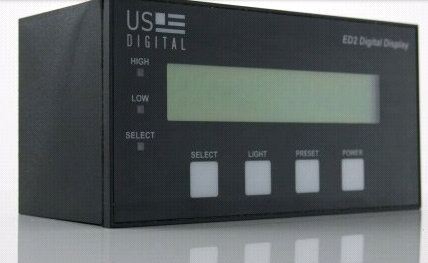

The ED2 has a hardware counter chip which is capable of high speed counting, and can monitor both ports simultaneously. The ED2 also has a microprocessor which can read the counter chip or communicate serially to absolute encoders to query them for their current positions. After the ED2 has obtained a raw count, depending upon how the ED2 was configured, it takes the raw count and multiplies it by a user configurable scale factor. The ED2 has two display registers. This means that it can keep track of two encoders at once. The user toggles between these display registers to select which encoder?channel is currently displayed on the LCD. If the user does not need or want more than one display, this can be disabled when the user configures the unit.

The count display is set to the preset value when the user presses the preset button. If an external reset signal is encountered the ED2 will display its minimum value, not its preset value. The preset value is entered by the user during unit configuration.
